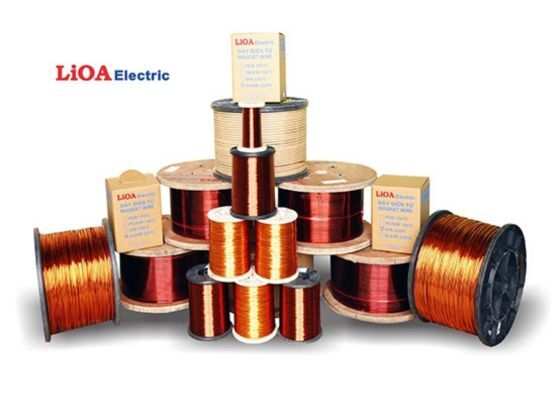

Copper Magnet wire

Copper magnet wire is copper wire coated with one or more thin layers of insulating enamel, creating a conductive material capable of insulating between coil turns. It is an irreplaceable material in the production of electric motors, transformers, inductors and electromagnetic devices.

LiOA Copper produces magnet wire from in-house drawn copper wire, coated with polyester, polyurethane, or polyamide-imide based on heat class.

APPLICABLE STANDARDS

IEC 60317: International standard for magnet wire + UL Certificate
NEMA MW: US standards for each wire type by heat class

TECHNICAL SPECIFICATIONS

Wire Diameter	Cu Ø 0.05–5.50 mm; Al Ø 0.30–4.80 mm
Insulation Types	5 types: Polyvinylacetal · Polyester · Polyesterimide · Polyurethane · Polyamide-Imide
Heat Class	6 classes: Class 155 / 175 / 180 / 200 / 220 / 240°C
Conductivity	≥ 100% IACS
Packaging	Plastic bobbins Ø 160-710 mm, 6–400 kg/bobbin
