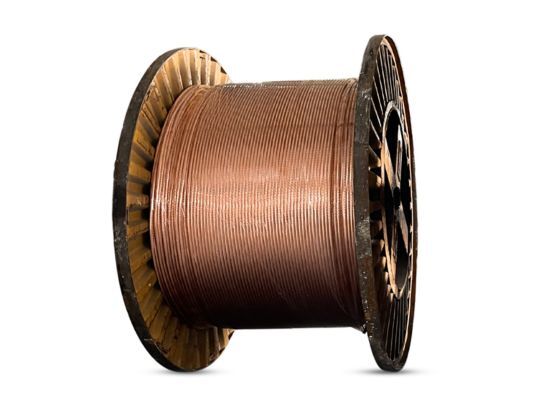

Copper Stranded/Bunched

Copper stranded (bunched) is a flexible conductor made by twisting multiple pure drawn copper wires together. It is an essential conductive material for flexible cable production — required where high bending performance must be combined with stable conductivity.

LiOA Copper manufactures stranded copper from in-house 99.99% pure drawn wire, conforming to international standard IEC 60228 (Class 5, Class 6). The product is packaged on reusable Techno reels — replacing traditional wooden drums entirely.

TECHNICAL SPECIFICATIONS

Production MethodTwisting / bunching from pure drawn copper wire
Copper CorePure copper 99.987% — SGS VNHL1812005887EE
Single Wire DiameterØ 0.15 — 0.30 mm (depending on class)
IEC 60228 ClassClass 5 / Class 6 — soft conductor for flexible cables
ConditionAnnealed (soft)
SurfaceBright copper or tinned on request
PackagingTechno reels — detachable and reusable

APPLICABLE STANDARDS

  • ISO 9001:2008: Quality Management System — applied at both LiOA factories (JAS-ANZ)
  • ISO 14001:2004: Environmental Management System — emissions control, recycling (QUACERT)
  • IEC 60228: Conductors of insulated cables — Class 5/6 for soft conductors in flexible cables
  • SGS Certificate: Cu 99.987% purity verification — VNHL1812005887EE

APPLICATIONS

Suitable for diverse industries and sectors:

  • Soft conductor cores in low-voltage (LV) power cables, control cables, signal cables
  • Flexible cables for mobile equipment, welding machines, industrial machinery
  • Grounding wires, power connection wires, equipment connection cables
  • Stranded wires in electronics, telecommunications, professional audio systems
  • Export to cable manufacturers in Southeast Asia and global markets

LiOA COPPER COMMITMENT

LiOA Copper is the industrial copper brand of LiOA Company — over 30 years of experience in Vietnam electrical equipment industry.

  • 2 Manufacturing Plants: Hung Yen & Dong Nai — full supply-chain control
  • 40,000 MT/year capacity: meeting large orders with on-time delivery
  • 99.99% pure copper: third-party purity verification with transparent documentation
  • Flexible pricing: daily updates following international LME market rates

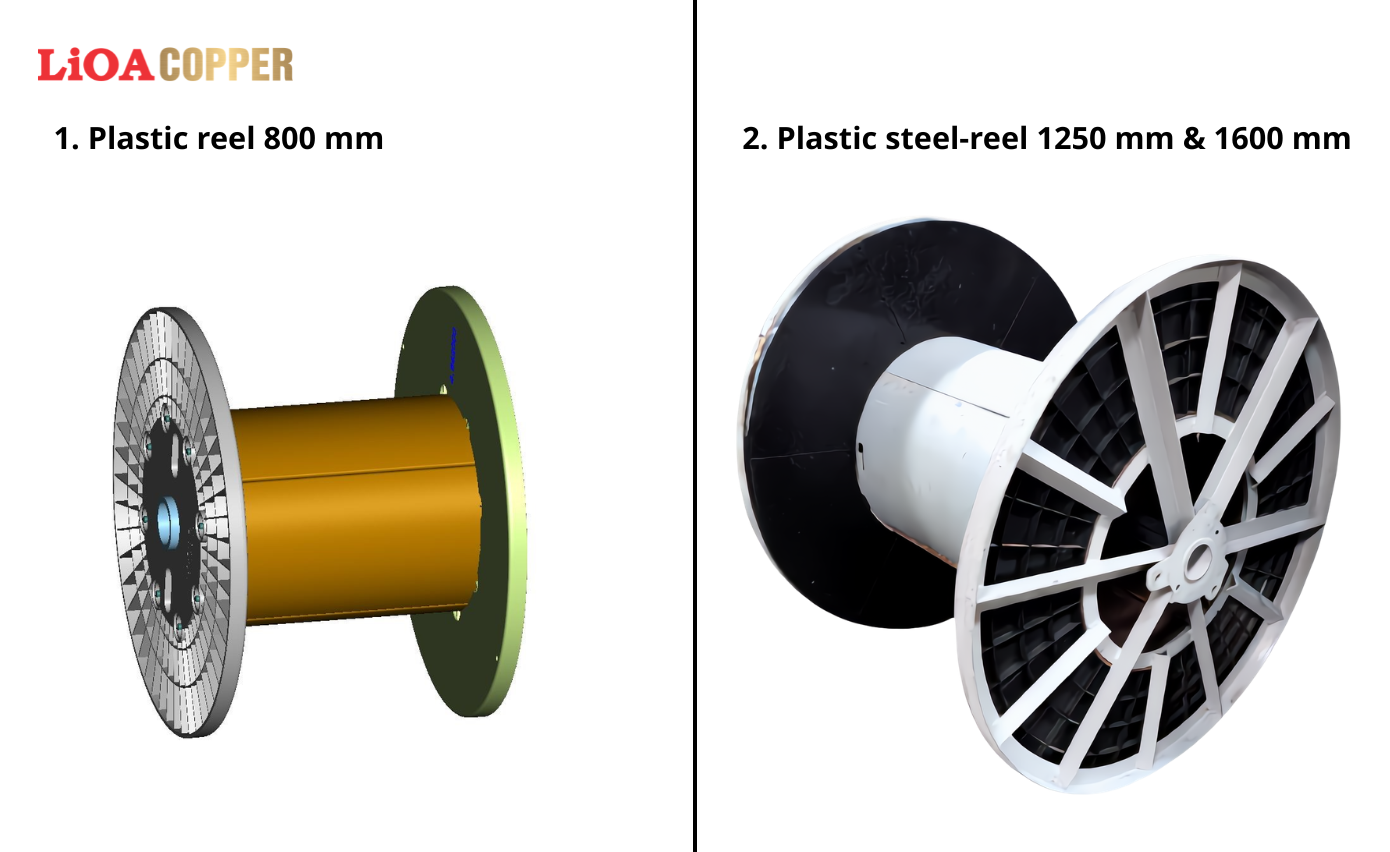

TECHNO REEL PACKAGING — LiOA DIFFERENCE

LiOA Copper stranded is packaged on Techno reels — detachable and reusable for multiple cycles.

A significant upgrade from traditional wooden drums, which are susceptible to moisture, warping, and termites — and only good for single use before disposal.

Techno Reel - LiOA Copper

DETAILED PACKAGING

No.Size
(mm²)
Length (m)
approx
Weight Max
(Kgs/reel)
No. of reels/20'
container (Reels)
Reel type
1243,000.00780.0028800 mm
23.524,000.00780.0028800 mm
35.515,460.00780.0028800 mm
4811,000.00780.0028800 mm
51426,000.003,300.0071250 mm Regular
62217,000.003,300.0071250 mm Regular
73012,500.003,300.0071250 mm Regular
83817,000.004,500.0051250 mm Long Barrel
95014,000.004,500.0051250 mm Long Barrel
106012,500.004,500.0051250 mm Long Barrel
11806,300.004,500.0051250 mm Long Barrel
121005,000.004,500.0051250 mm Long Barrel
131254,000.004,500.0051250 mm Long Barrel
141503,400.004,500.0051250 mm Long Barrel
152002,700.004,900.0051600 mm
162502,200.004,900.0051600 mm

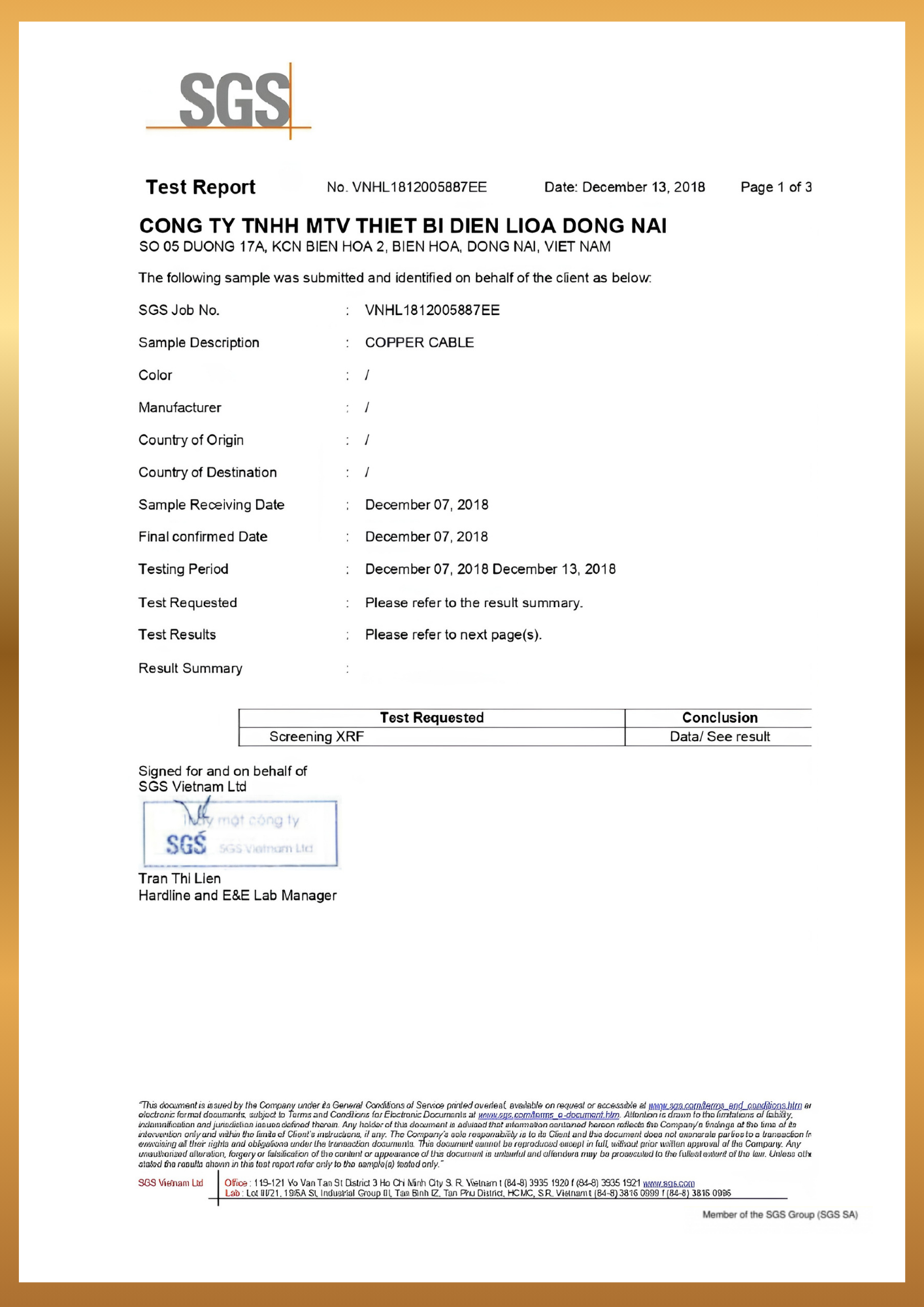

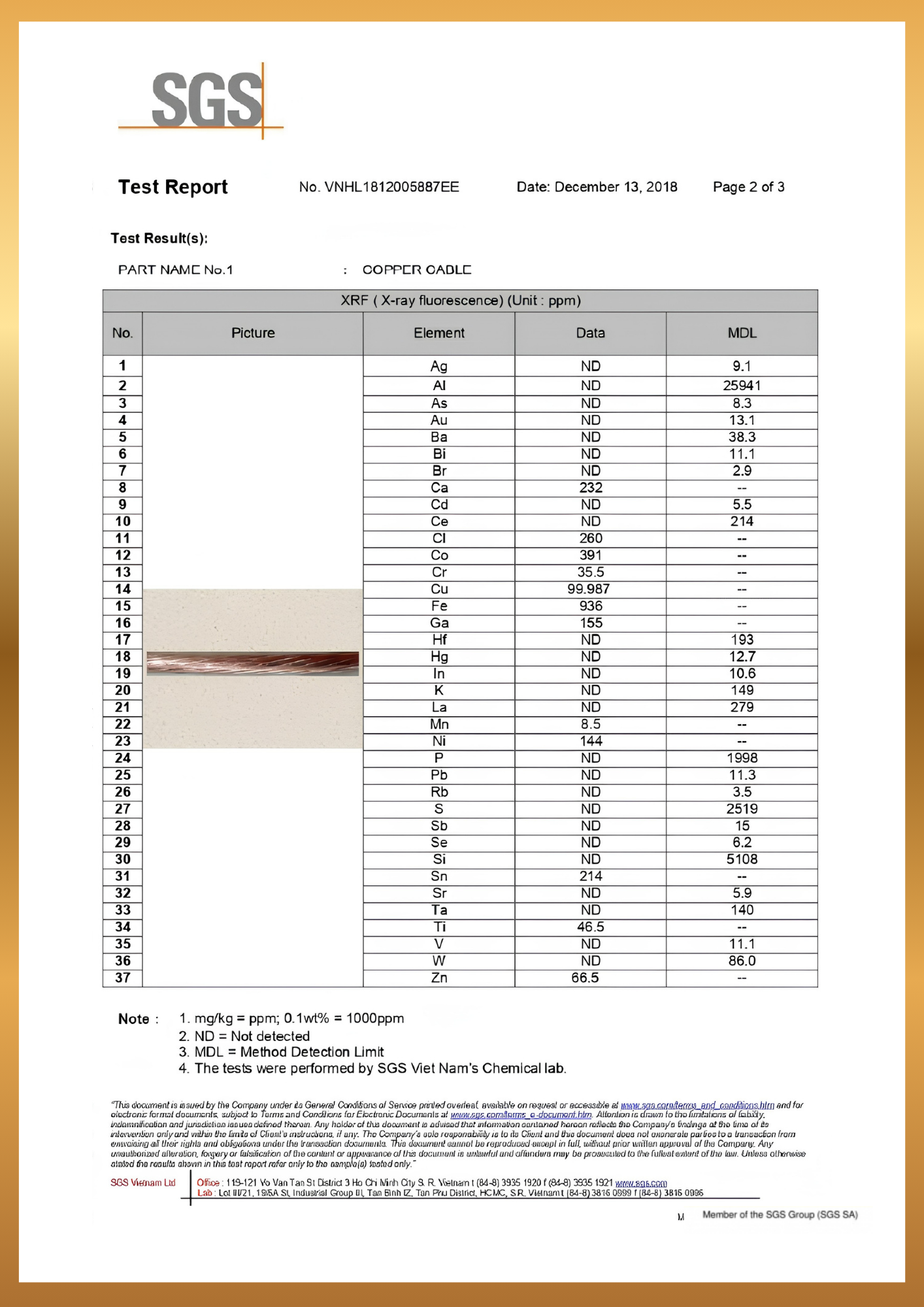

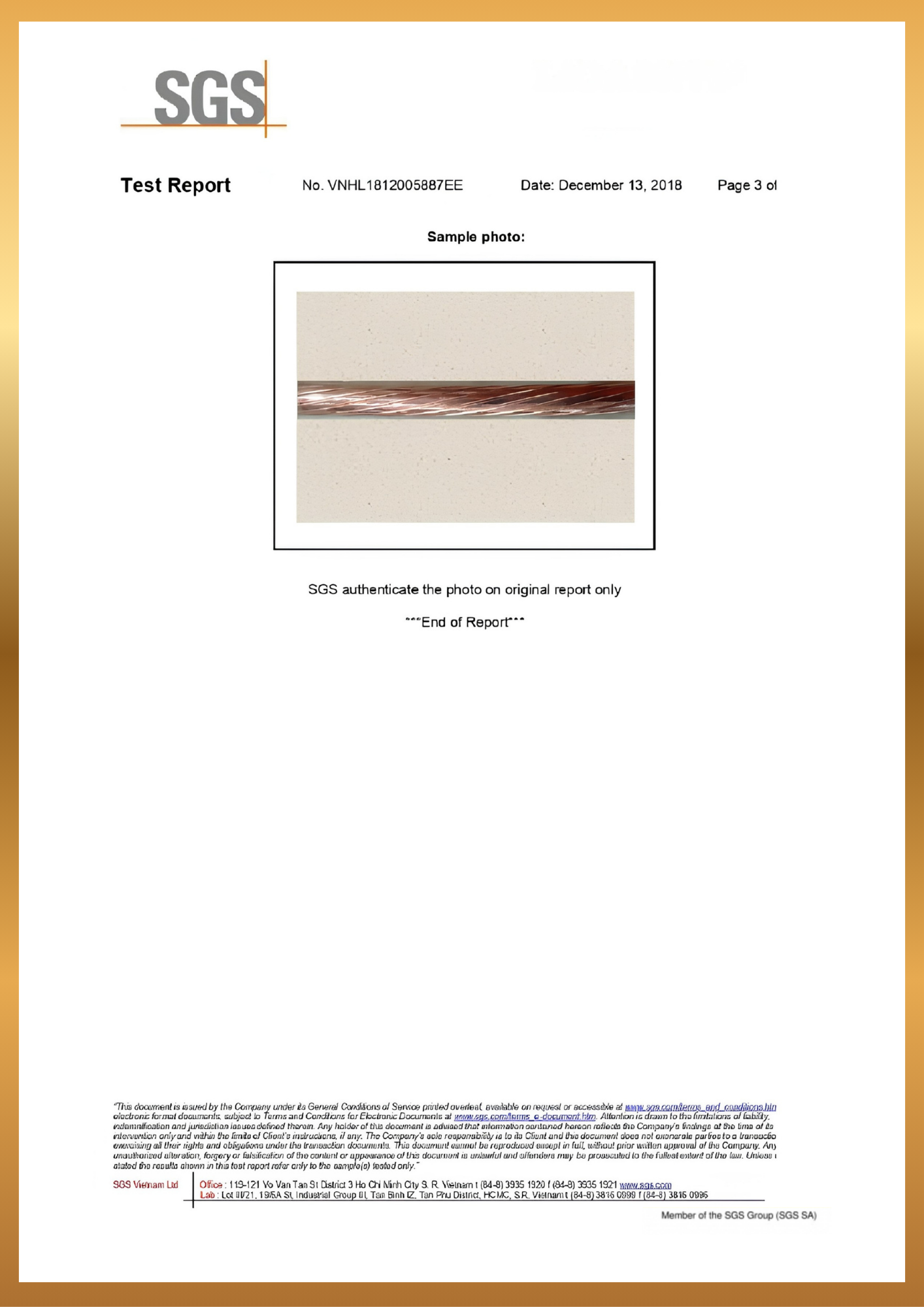

SGS CERTIFICATE

Copper Stranded - SGS 1

Copper Stranded - SGS 2

Copper Stranded - SGS 3
